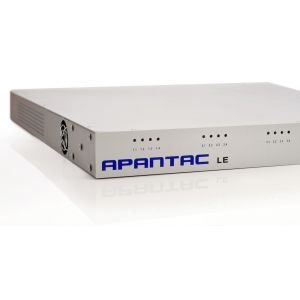

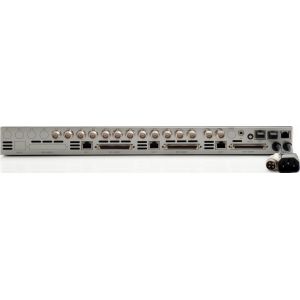

LE-12CV 12 Input Analog Multiviewer with built-in CATx extender

LE-12CV 12 Input Analog Multiviewer with built-in CATx extender LE-12CV 12 Input Analog Multiviewer with built-in CATx extender

£4,576.00 ex. Vat
£5,491.20 inc. Vat

Request more information

  More information

  A telephone callback

  An official quotation

  An on-site demonstration


LE-12CV 12 Input Analog Multiviewer with built-in CATx extender Description

  • Single frame processing delay
  • 12 auto-detect PAL/NTSC composite inputs
  • Upgradable to SD, HD and 3G
  • 4 channels of discrete audio per input (optional)
  • Supports DVI, HDMI, VGA (optional), SDI (optional) outputs
  • Supports full 10-bit HDMI 1.3 outputs
  • Output resolution up to 2048 x 1080 (including 1080p)
  • Built-in CATx extenders - extend 1080p (DVI/HDMI) up to 115 feet with optional active receivers
  • Built-in analog and digital clocks for time of day and up/down counters
  • Built-in LTC timecode and NTP for clock synchronization
  • Multiple labels per video windows - UMD, OMD, IMD, standalone labels
  • Supports Serial/IP and GPI tally
  • Automatic input aspect ratio detection
  • Built-in video, audio alarm detections - no audio, audio high/low, no video, video black, video frozen, WSS/AFD
  • Apantac Skin Technology allows on-screen graphical elements to be customized with any graphics tools
  • Field upgradable to allow discreet audio (AES/AA)
  • Front panel headphone jack with volume adjustment for convenient audio monitoring
  • Front panel buttons for quick preset recalls
  • 1RU with optional redundant power supply
  • 3 Year limited warranty

LE-12CV 12 Input Analog Multiviewer with built-in CATx extender Specification


  • Video Inputs: 12 Composite (PAL/NTSC)
  • Outputs: 1-3 DVI, HDMI,VGA (option),1 SDI (option)
  • Output Resolution: 800 x 480 - 2048 x 1080 (1080p)
  • Connectors: BNC IEC 61169-8 Annex A
  • Total Windows: 12
  • Built-in CATx Extender: Up to 35 feet Extend up to 115 feet (with optional active receiver
  • Composite: NTSC (SMPTE-170M), PAL (ITU624-2)
  • On Screen Display: Skin Technology for customizing borders, labels (4 /window), fonts, tally LEDS, clock faces, logos, UMD, OMD, IMD, dynamic UMD
  • Equalization: 120m at 2.97 Gpbs, 140m at 1.485 Gbps, 400m at 270 Mbps with Belden 1694A
  • General Purpose IO: 32 inputs with DB9 connectors
  • Sound Level: IV Nominal
  • DC Offset: 0V, + 0.1V
  • Input Impedance: 75ohm
  • Serial Port: RS232 with RS422 or RS485 option, Connector: RJ45 Baud Rate Up to 115200 Supported Protocols: TSL, TSI, AXP
  • AES Audio: 4 channels / video input (2 pairs, balanced / unbalanced)
  • Analog Stereo Audio:4 channels / video input (balanced / unbalanced)
  • Embedded Audio: N/A
  • IP: 100 Base-TX, Supported Protocols: TSL, AXP, Connector: RJ45
  • Alarms: No audio, audio high / low, no video, video black, video frozen, WSS, AFD
  • Control: Front panel buttons for quick preset recalls, GPIs, Apantac ASCII Protocol (AXP), Director (configuration and control application)
  • Electrical: 25W, 90-250V 50/60 Hz
  • EMI/RFI: Complies with FCC Part 15, Class A, CE, EU
  • Power: Redundant power supply
  • Size: 1RU, 44.5cm (17.5") W x 50cm (19.7") D



Apantac LLC is a leading designer and developer of high quality, cost effective image signal processing equipment. The Apantac product line has been specifically designed to provide users with a flexible and innovative technology solution for image processing, and signal extension and processing. The Apantac product line includes: TAHOMA Platform of Multiviewers - TAHOMA-LE - TAHOMA-LI - TAHOMA-LX - TAHOMA-DE - TAHOMA-LC MT HOOD Series of Signal Processing - KVM Extenders / Receivers - Multi-Console KVM Extenders - HDMI Extenders / Receivers / Splitters - DVI Extenders / Receivers / Splitters - VGA Extenders / Receivers / Splitters - Touch-Screen Extenders / Receivers - Universal Extenders / Receivers - Mini Converters / Extenders - KVM Switches with built-in Extenders - HDMI Matrix Switches with built-in Extenders - Conference Connect projector & display sharing solution MAZAMA Series Fiber Optic Signal - DVI Fiber Optic Extenders - HDMI Fiber Optic Extenders CRESCENT Signal Processing - HDMI to SDI Converter - 1x4 Reclocking Distribution Amplifier - 1x8 Reclocking Distribution Amplifier - SDI to HDMI / DVI Converter - SDI Deembedder These products are marketed globally through direct selling channels, a growing network of dealers, system integrators, OEMs and various other partners. The Apantac product line is suitable for a variety of applications including; - Broadcast, Media, and Post Production - Professional Audio Visual - Command and Control - IT and Enterprise (small, medium, large) - Medical Imaging - Digital Signage - Government - Education and Training Apantac is well positioned to offer a complete solution for your image and signal processing needs. With their products, representation of several manufacturers' product lines, as well as vast network of partners, Apantac offers complete audio video solutions and technologies, consultation and service to meet your specific requirements. Apantac is led by seasoned industry veteran, Thomas Tang. Thomas has a commanding background that includes engineering, applications, sales and marketing, business management, and business development. The Apantac team has decades of combined experience in providing audio / video solutions for a variety of markets and includes a diverse group of engineers, product developers and designers, and management personnel. Capitalizing on this experience, product innovations through investment in research and development, and outstanding customer service, Apantac is positioned as a leader committed to delivering innovative processing solutions. Apantac was founded in 2008 and is a privately held company with its headquarters located in Portland, Oregon, USA.
