2×4 SWITCHABLE BATTERY POWERED RE-CLOCKING DA

OUR PRICE:
£599.00 ex. Vat
£718.80 inc. Vat

Request more information

Your Name:

Email address:

and/or telephone:

I would like:

More information

A telephone callback

An official quotation

An on-site demonstration

Enter the characters:
Change Image

Please tick this box to confirm you consent to us storing your personal details in order to provide more information to you about this product. GDPR

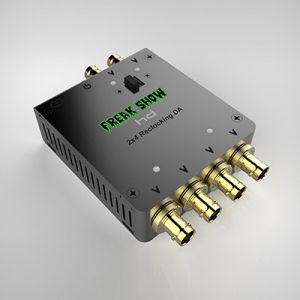

2×4 SWITCHABLE BATTERY POWERED RE-CLOCKING DA Description

A complete video assist system in a box. Two inputs, 4 outputs, re-clocking, switching, and equalizing all in a compact internal Battery powered package. Quite simply this baby does it all. Switch between A and B 1x4 modes as well as 2x4 mode to provide maximum signal flexibility. The re-clocked and equalized output extends two 3Gb signals over 400ft. each.

2×4 SWITCHABLE BATTERY POWERED RE-CLOCKING DA Specification

Formats	3Gb-270Mb SDI Auto Select
Inputs	2 HD-SDI, SDI (SMPTE 259/292/296/424), 1x BNC
Outputs	4 HD-SDI, SDI (SMPTE 259/292/296/424), 1x BNC
Cable Equalization	3Gb, 120m
Input/Output Return Loss	>15db, 270Mb - 3Gb Power +12-36VDC, Regulated
Battery	12 Hour rechargeable lithium ion battery Battery indication button
