MSX4-L Reclocking DA Description

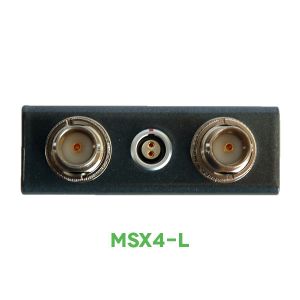

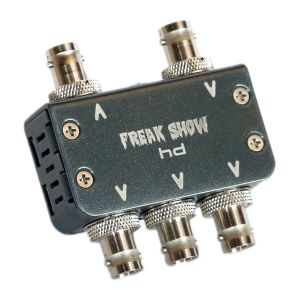

Freakshow, the company with the biggest ideas in 4K/12G distribution, introduces the smallest product yet. Meet the Micro Split MSX4, the worlds most compact 4K/12G Reclocking DA. The Micro Split is available in O-series with a standard FREAKSHOW connector or in L-series with a locking Lemo connector. The latest in reclocking and cable EQ technology extends cable runs up to 700 feet! The Micro Split's 12G/HD/SD-SDI flexibility is future proof, and exceeds previous generations' performance.

MSX4-L Reclocking DA Specification

Formats 4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, 270Mb-SDI. Meets and exceeds SMPTE-424, SMPTE-292, SMPTE-259
Inputs 1x12G/ 6G/ 3G/ 1.5G/ 270Mb - Auto-selectable SDI, 1xBNC
Outputs 4x12G/ 6G/ 3G/ 1.5G/ 270Mb, equalization and re-clocking
Cable Re-clocking and Equalization (all with Belden 1694A - divide by half for Belden 1505): 75 meters (246ft) at 12G, 100 meters (328ft) at 6G, 220 meters (722ft) at 3G, 265 meters (870ft) at HD, 530 meters (1740ft) at SD
Input return loss -8dB at 12G, -9dB at 6G, -13dB at 3G, -18dB HD/SD
Output return loss Return loss -6dB at 12G, -8.5dB at 6G, -15dB at 3G, -23dB at HD/SD
