Northligh 1 Film Scanner

Northligh 1 Film Scanner

Call for Price

This is a secondhand item

Request more information

  More information

  A telephone callback

  An official quotation

  An on-site demonstration

CAPTCHA Image

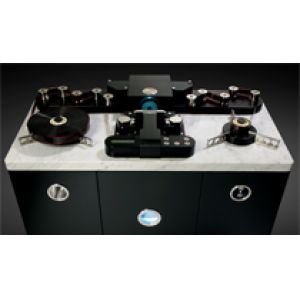

Northligh 1 Film Scanner Description

The Northlight scanner is the benchmark for quality, adopted across the industry and in use at all premier studios across the globe.

Northlight is engineered to meet the exceptional demands of feature-length digital film mastering. Built around a non-static, optical bench of solid marble, it produces ultra-quiet, high-resolution, stable scans with superb colour fidelity and repeatability. All spatial information and dynamic range is captured in a single pass. Northlight integrates with other FilmLight or third party applications to produce definitive, DCI-compliant masters without dither or noise.

Northlight is also perfectly suited to back catalogue preservation. It can handle 16 and Super16mm, all 35mm formats, 3 perf, 4 perf, and VistaVision, and special purpose gates are also available for scanning shrunken archive stocks. Switching formats takes just a few seconds.

Northlight handles any output format, crop, or aspect ratio, and robust engineering ensures an exceptionally long service life.

While Northlight 1 provides resolution up to 6K, Northlight 2 matches-and surpasses-the requirements of the feature film industry as it embraces 4K workflow and digital cinema projection. Northlight 2 delivers up to six times the scanning speed of Northlight 1, with an internal resolution of 8K.

On-site upgrades allow all Northlight 1 users to enjoy the powerful features of Northlight 2.

FilmLight is guided by one overriding objective: to provide the best film-digitising system in the world. Acknowledged as an industry leader and installed in most premier studios around the globe, Northlight 1-and now Northlight 2-continues to fulfil that objective.



Northligh 1 Film Scanner Specification

  • 35mm scanning @ 2k or 4k or 6k (6k sampling for all)
  • 16mm scanning @ 2k or 3k (3k sampling for all)
  • IR Dirt detection with automatic paint out using forge software (Plug-in)
  • Built in 16 & 35mm Key Code readers
  • Dedicated Computer for FilmLight software
  • Dedicated rack mount computer for Forge software (Plug-ins)
  • Embedded defect map option assists with automated dust-busting
  • True 16-bit colour depth
  • Ultra low noise linear motor scan action
  • Revolutionary, pin-registered projector design with fast spooling
  • Easy to load, safe transport with push button re-racking
  • Unique projector action allowing all current film formats-16mm, Super16mm, 2/3/4/8 perf 35mm
  • 8 perf VistaVision and 3 perf gate options
  • Stable 700W metal halide diffuse illumination system
  • Up to 8K 35mm or 4K 16mm
  • Academy/scope/full-gate/user-defined crops as required
  • Full resolution oversampling at all output resolutions
  • Full pin registration with exchangeable pin blocks
  • Fully indexed for scanning frame-accurate to EDLs
  • 2000' roll capacity
  • Automatic generation of high quality proxy images
  • Outputs 10-bit or 16-bit log DPX/Cineon files to standard file system
  • Designed to allow unattended roll end-to-end operation
  • Optional 16mm and 35mm keycode readers
  • Ability to output monochrome DPX files
