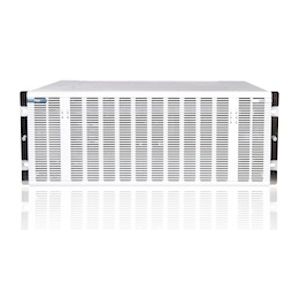

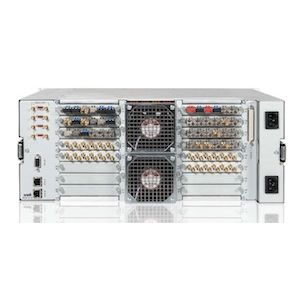

Vega 400 Mainframe

OUR PRICE:
£32,245.00 ex. Vat
£38,694.00 inc. Vat

Request more information

Your Name:

Email address:

and/or telephone:

I would like:

More information

A telephone callback

An official quotation

An on-site demonstration

Enter the characters:
Change Image

Please tick this box to confirm you consent to us storing your personal details in order to provide more information to you about this product. GDPR

Vega 400 Mainframe Description

Vega is different... we describe it as 'fully asymmetric'... every port can be independently set up as an input or an output! For monitoring or distribution applications in particular, this minimizes I/O port wastage, where a traditional router of twice the size might be needed to implement the same system solution. Vega offers real savings in cost and space!

The basic format of video routers has remained unchanged for decades - it's time to offer so much more!

Total asymmetric signal routing Each signal port independently conï?? gured for use as an input or output

Coaxial copper or ï??ber connectivity HD-BNC and/or LC ï?? ber SFP (Small Form-factor Pluggable) I/O modules

Extensive redundancy options Dual redundant crosspoints, frame controllers, power supplies and fans

Ultra compact frame 50% more signal ports than conventional coax router for same rack height

Entry level lower cost alternative Dedicated 12-port 'coax only' rear modules (ï??ber connectivity not required)

Comprehensive set of 'soft' and/or 'hard' control options Intuitive software-based 'plug and play' control and monitoring system and/or 1RU and 2RU control panels.

Vega 400 Mainframe Specification

Download PDF Specification Sheet

1x VG-MF400 Main Frame 192-Port I/O HD BNC reference inputs (4 Looped)
1x VG-PSU1 Power Supply unit for VG-MF192H series mainframes
1x VG-XPT400 X Cross-Point Card for VG-MF192H series mainframes
1x VG-CTLBUF Controller Card for VG-MF192H series mainframes
16x VG-RM12H-SDI Vega 12-Port SDI I/O Rear Module, HD BNC (1 slot)

Unique flexibility

Every signal port can be configured as an input or an output
Supports both copper and fiber, or a mixture of the two

Mission critical reliability

Dual redundant crosspoints, frame controllers, power supplies and fans
Algorithmic system monitoring
Redundancy components are all hot pluggable

Installation efficiency

50% more signal ports than a conventional coax router of equivalent rack height
Bridged coax / fiber boundaries without external media converters

Options

VG-PSU1 Power Supply Unit for VG-MF192 series mainframes, Type A

VG-XPT400 X(Cross)-Point Card for VG-MF192 series mainframes, Type A

VG-CTLBUF Controller Card for VG-MF1192 series mainframes, Type A

VG-RM6SFP-SDI Rear Module, 6-Cage (12-Port) I/O, Serial Digital Interface

SM-T31T31-3G SM Fiber, 1310nm Tx + 1310nm Tx, 3Gb/s SDI

SM-T55T55-3G SM Fiber, 1550nm Tx + 1550nm Tx, 3Gb/s SDI

SM-T31R-3G SM Fiber, 1310nm Tx + 1260-1620nm Rx, 3Gb/s SDI

SM-T55R-3G SM Fiber, 1550nm Tx + 1260-1620nm Rx, 3Gb/s SDI

SM-RR-3G SM Fiber, 1260-1620nm Rx + 1260-1620nm Rx, 3Gb/s SDI

SM-T59T61-3G SM Fiber, 1591nm* Tx + 1611nm Tx, 3Gb/s SDI

SM-T55T57-3G SM Fiber, 1551nm* Tx + 1571nm Tx, 3Gb/s SDI

SM-T51T53-3G SM Fiber, 1511nm* Tx + 1531nm Tx, 3Gb/s SDI

SM-T47T49-3G SM Fiber, 1471nm* Tx + 1491nm Tx, 3Gb/s SDI

SM-T43T45-3G SM Fiber, 1431nm* Tx + 1451nm Tx, 3Gb/s SDI

SM-T39T41-3G SM Fiber, 1391nm* Tx + 1411nm Tx, 3Gb/s SDI

SM-T35T37-3G SM Fiber, 1351nm* Tx + 1371nm Tx, 3Gb/s SDI

SM-T31T33-3G SM Fiber, 1311nm* Tx + 1331nm Tx, 3Gb/s SDI

SM-T27T29-3G SM Fiber, 1271nm* Tx + 1291nm Tx, 3Gb/s SDI

CC-TTH-3G-N Coaxial Copper, Tx + Tx, HD BNC, 3Gb/s SDI, Non-reclocking

CC-TRH-3G-N Coaxial Copper, Tx + Rx, HD BNC, 3Gb/s SDI, Non-reclocking

CC-RRH-3G-N Coaxial Copper, Rx + Rx, HD BNC, 3Gb/s SDI, Non-reclocking

SFP-Blank Small form Factor Pluggable EMI & Dust Blanking module

SFP-10Pack-CA HD BNC, CC-TTH-3G-N x 4, CC-TRH-3G-N x 2, CC-RRH-3G-N x 4

SFP-10Pack-FA SM Fiber, SM-T31T31-3G x 2, SM-T55T55-3G x 2, SM-RR-3G x 4
SM-T31R-3G x 1, SM-T55R-3G x 1

VG-RM12H-SDI Rear Module, 12-Port I/O HD BNC, Serial Digital Interface

VG-RMBP Rear Module Blanking Panel

VG-RMFU Rear Module Fan Unit

VG-MC37D Mating Connector & Shell, 37-way D type, solder bucket, screw lock

VG-CA37D9-4 Cable Assembly, 37-way D type to 9-way x 4 (Auxiliary serial ports)

6028000RCSB 78-Key LED High Density Button Control Panel - Blue

6028000RCWH 78-Key LED High Density Button Control Panel - White

6028251RCSB 39-Key LCD Control Panel with Rotary Encoder Knob - Blue

6028251RCWH 39-Key LCD Control Panel with Rotary Encoder Knob - White
