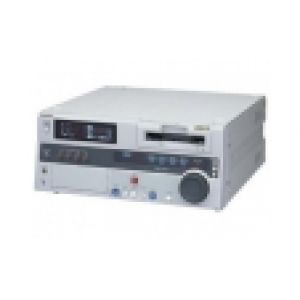

DSR-1800AP DVCAM Studio Player/Recorder

OUR PRICE:
£2,500.00 ex. Vat
£3,000.00 inc. Vat

This is a secondhand item

Request more information

Your Name:

Email address:

and/or telephone:

I would like:

More information

A telephone callback

An official quotation

An on-site demonstration

Enter the characters:
Change Image

Please tick this box to confirm you consent to us storing your personal details in order to provide more information to you about this product. GDPR

DSR-1800AP DVCAM Studio Player/Recorder Description

Reflecting market demands, employing higher standards of technology and using the experiences of the DSR-2000P, we will innovate the DSR-80P by introducing new line-ups, DSR-1800P. With all these excellence and innovations available, the DSR-1800P will be a major workforce in video production fields by satisfying those highly professionals.

The DSR-1800P provides excellent performance in an editing environment. It has a full range of analogue and digital interfaces, a responsive search dial function and many other powerful features. A key advantage is playback compatibility with DV, DVCAM and DVCPRO (25 Mb/s).

DSR-1800AP DVCAM Studio Player/Recorder Specification

Power requirements: AC 100 V - 240V 50 - 60 Hz
Power consumption: 100 W (with all options)
Operation Temperature: 5 C - 40 C
Storage temperature: -20C - +60 C
Operating relative humidity: Less than 80%
Storage relative humidity: Less than 90%
Mass: 13 Kg
Tape speed: 28.221 mm/s
Recording/Playback time: Standard size: 184 minutes / Mini size: 40 minutes
FF/REW time: Standard size: Less than 3 minutes / Mini size: Less than 1 minutes
Search speed: Max.: 85 times normal speed, forward and reverse via RS-422A
Video performance
Band width: Luminance: 25 Hz to 5.0 MHz +/-1.0 dB / Chrominance: 25 Hz to 2.0 MHz +1.0/-2.0 dB
S/N Ratio: More than 55 dB
K-factor: 2.0% or less(K2T,KPB)
Y/C delay: Less than 30 ns
Frequency response: 2Ch mode(48kHz/16bits) 20 Hz to 20 KHz +/-1.0dB / 4Ch mode(32kHz/12bits) 20 Hz to 14.5kHz +/-1.0dB
Dynamic range: More than 90 dB
Distortion(THD + N): Less than 0.05%(at 48 Khz)

Input: BNC x 1, EBU time code, 0.5 Vp-p to 18 Vp-p, 3k, unbalanced

Output: BNC x 1, EBU time code, 2.2 Vp-p, 75, unbalanced

RS-422A:9-pin D-sub connector x 1, female

i.LINK:IEEE-1394, 6-pin x 1
