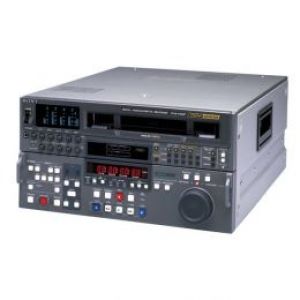

DVW-A500P Digital Betacam Player/Recorder

DVW-A500P Digital Betacam Player/Recorder Description

The DVW A500P is the most fully-featured VTR in the Digital Betacam line-up. It records and replays component digital video using small and large Digital Betacam cassettes.

The DVW A500P can also replay Betacam and Betacam SP cassettes, allowing analogue material to be easily replayed into digital systems.

The robust construction of the DVW-A500P, it's 4 channels of 20 bit digital audio and it's high quality video output have also made it a firm favourite for linear "on-air" playout.

The DVW-A500P is also the ultimate VTR for digital capture and play-out of SD (Standard Definition) material from Non-Linear editing and compositing suites.

DVW-A500P Digital Betacam Player/Recorder Specification

• Power Requirements: AC 90 V to 265 V, 50/60 Hz
• Power Consumption: 240 W (540 VA)/AC 240 V
• Operating Temperature: +5C to +40C (+41F to +104F)
• Storage Temperature:  -20C to +60C (-4F to +140F)
• Humidity: 25% to 85% (relative humidity)
• Mass: Approx. 35 kg
• Dimensions: 427 mm x 237 mm x 520 mm
• Recording Format: Digital Betacam



Video Input Signals

• Analogue reference: BNC with loop through
• Analogue composite: BNC with loop through
• Analogue component: 3 x BNC (Y, R-Y, B-Y)
• SDI: BNC with active loop through

Video Output Signals

• Analogue composite: 3 x BNC (one with character display)
• Analogue component: 3 x BNC (Y, R-Y, B-Y)
• SDI: 4 x BNC (one with character display)

Audio Input Signals

• Analogue audio: 5 x XLR 3-pin (CH 1 to 4 and CUE)
• Digital audio (AES/EBU): 2 x XLR 3-pin (CH1/2 and CH3/4)
• SDI: BNC with active loop through
• Time Code: XLR 3-pin

Audio Output Signals

• Analogue audio: 5 x XLR 3-pin (CH 1 to 4 and CUE
• Digital audio (AES/EBU): 2 x XLR 3-pin (CH1/2 and CH3/4)
• SDI: 4 x BNC
• Time Code: XLR 3-pin

Remote Control

• RS-422A IN: D-sub 9-pin
• RS-422A OUT: D-sub 9-pin
• RS-232C (ISR*): D-sub 25-pin
• Video Control: D-sub 15-pin
• Control panel: 15-pin
• Parallel Remote (with optional BKDW-509): D-sub 50-pin
