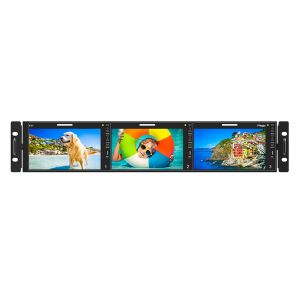

R-5T 12G-SDI Supported 3 x 5.5’’ LCD Full HD Screen

Please Call for Pricing

Request more information

Your Name:

Email address:

and/or telephone:

I would like:

More information

A telephone callback

An official quotation

An on-site demonstration

Enter the characters:
Change Image

Please tick this box to confirm you consent to us storing your personal details in order to provide more information to you about this product. GDPR

R-5T 12G-SDI Supported 3 x 5.5’’ LCD Full HD Screen Description

The R-5T is a brand-new rack monitor(3 x 5.5â€?) with advanced design and performance. It offers an outstanding picture quality with a Full HD resolution of 1920 x 1080 and high luminance up to 500cd/?. The R-5T supports the video formats up to 12G-SDI and HDMI 2.0 and the professional features such as Scan, Audio Level Meter, Time Code Display, Waveform/Vectorscope and UMD.

R-5T 12G-SDI Supported 3 x 5.5’’ LCD Full HD Screen Specification

Download PDF Specification Sheet

Display Spec.

Size 5.5"

Resolution 1920 X 1080 (16:9)

Pixel Pitch 0.0213(W) x 0.0639(H)

Color Depth 16.7M

Viewing Angle 160ÂÂÂ°(H) / 160ÂÂÂ°(V)

Luminance 500cd/m2

Contrast Ratio 1,000:1

Display Area 122.7(H) ?- 69.0(V) mm

Input

2 X BNC 3G-SDI A/B Channel Input

4 X BNC 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input

1 X HDMI HDMI Input

Output

4 X BNC 1 x 12G-SDI OUTPUT

Audio

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom

Closed Caption

Calibration

TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

REMOTE GPI (RJ45)

USB Firmware update by USB memory stick

Ethernet Ethernet Control support

Conversion SDI-to-SDI,

Options

About

Since 2002, TVLogic has been dedicated to developing and manufacturing the highest quality video monitoring systems available for broadcast, production and post-production as well as digital signage & multi-viewer applications. Today, TVLogic is among the world's leading broadcast and professional monitor manufacturers and offers the widest range of video monitoring solutions in the industry. Our precision-engineered technology and innovative designs provide customers in top broadcast and production facilities around the world with reliable reference grade displays for the most demanding critical viewing applications. TVLogic's 2011 monitor line-up offers 30 models that encompass a wide variety of professional video display requirements.
