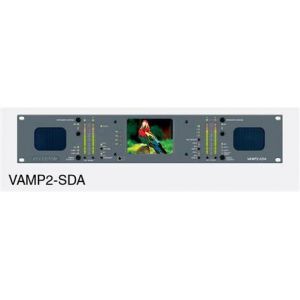

DTV VAMP2-SDA 2U SDI Video & Audio Monitoring

VAMP2-SDA offers the ability to monitor both audio and video from two selectable SDI digital and two composite analog video sources in a space-saving 2U unit. A pair of auxiliary AES inputs and eight analog audio inputs are also included for applications that donâ€â??t use embedded audio.

• 4â€? Color LCD Video Screen - Autosensing NTSC/PAL
• Self-Powered Speaker System
• 53-Segment Tri-Color LED Level Meters showing Simultaneous VU & PPM
• 2 SDI and 2 Composite Video Inputs
• Converts SDI to Analog Composite Video Outputs
• SDI to RGB/YUV Video Output
• Deembeds any selected Audio Group from SDI to AES/EBU Digital and Analog Outputs
• Convenient Front Panel SDI Audio Group Select Control
• Two Pairs of 2 AES/EBU or two pairs of 4 Analog Audio Inputs
• Internal or External Speaker Switch (No Amplifier Needed)
• Headphone Jack (mutes speakers)
• Low Power Consumption
• Requires only 2U of Rackspace
