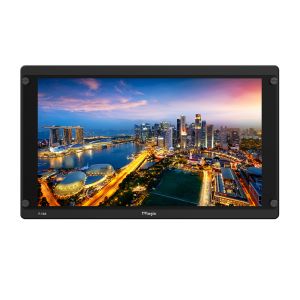

F-10A 10’’ Full HD HDR field monitor with HDMI 2.0 & HDCP 2.2

F-10A  10’’ Full HD HDR field monitor with HDMI 2.0 & HDCP 2.2

Please Call for Pricing

Request more information

  More information

  A telephone callback

  An official quotation

  An on-site demonstration

CAPTCHA Image

F-10A 10’’ Full HD HDR field monitor with HDMI 2.0 & HDCP 2.2 Description

The F-10A is the new 10" field monitor with HDR capability and Full HD resolution. Designed for versatile field production applications, the F-10A offers nearly half the weight and slimmer design compared to its class size. It also supports HDMI 2.0 and HDCP 2.2 to support 4K HDR 60Hz and supports various video signals (3G HD/SD-SDI, HDMI). In addition, it provides various professional functions such as HDMI â?" SDI conversion output, Camera LUTs, Arri Metadata Display, Waveform/Vectorscope, H/V Flip, Auto Flip, Scan and Image Overlay.

F-10A 10’’ Full HD HDR field monitor with HDMI 2.0 & HDCP 2.2 Specification

Download PDF Specification Sheet

Display Spec.

 Size     10"

 Resolution       1920 X 1080 (16:9)

 Pixel Pitch        0.11475mm

 Color Depth     16.7M

 Viewing Angle  160°(H) / 160°(V)

 Luminance       300cd/m2

 Contrast Ratio 1,000:1

 Display Area    220.32mm(H) x 123.93(V) mm

Input

 2 X BNC           3G-SDI A/B Channel Input

 1 X HDMI         HDMI Input

Output

 2 X BNC           3G-SDI Output

 1 X HDMI         HDMI Output

Audio

 Audio In          Embedded Audio/Analog Stereo (Phone Jack)

FPGA Functions

 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,

 H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Time Code Display,

 UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.

Closed Caption

Calibration

 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

 REMOTE            GPI (RJ45)

 USB       Firmware update by USB memory stick

 Ethernet            Ethernet Control support

 Conversion        HDMI-to-HDMI,  HDMI-to-SDI,  SDI-to-HDMI,  SDI-to-SDI,

Options

 Battery Bracket, HDMI Bracket,  Camera Mount, Ball Head,  Carrying Case,  D-Tap Cable,  External Acrylic Filter,  Gold Mount,  Sun Hood,  V-Mount

About

Since 2002, TVLogic has been dedicated to developing and manufacturing the highest quality video monitoring systems available for broadcast, production and post-production as well as digital signage & multi-viewer applications. Today, TVLogic is among the world's leading broadcast and professional monitor manufacturers and offers the widest range of video monitoring solutions in the industry. Our precision-engineered technology and innovative designs provide customers in top broadcast and production facilities around the world with reliable reference grade displays for the most demanding critical viewing applications. TVLogic's 2011 monitor line-up offers 30 models that encompass a wide variety of professional video display requirements.
